Servery Windows

1800mm
Max Height
Unlimited
Width
10mm
Toughened Safety Glass

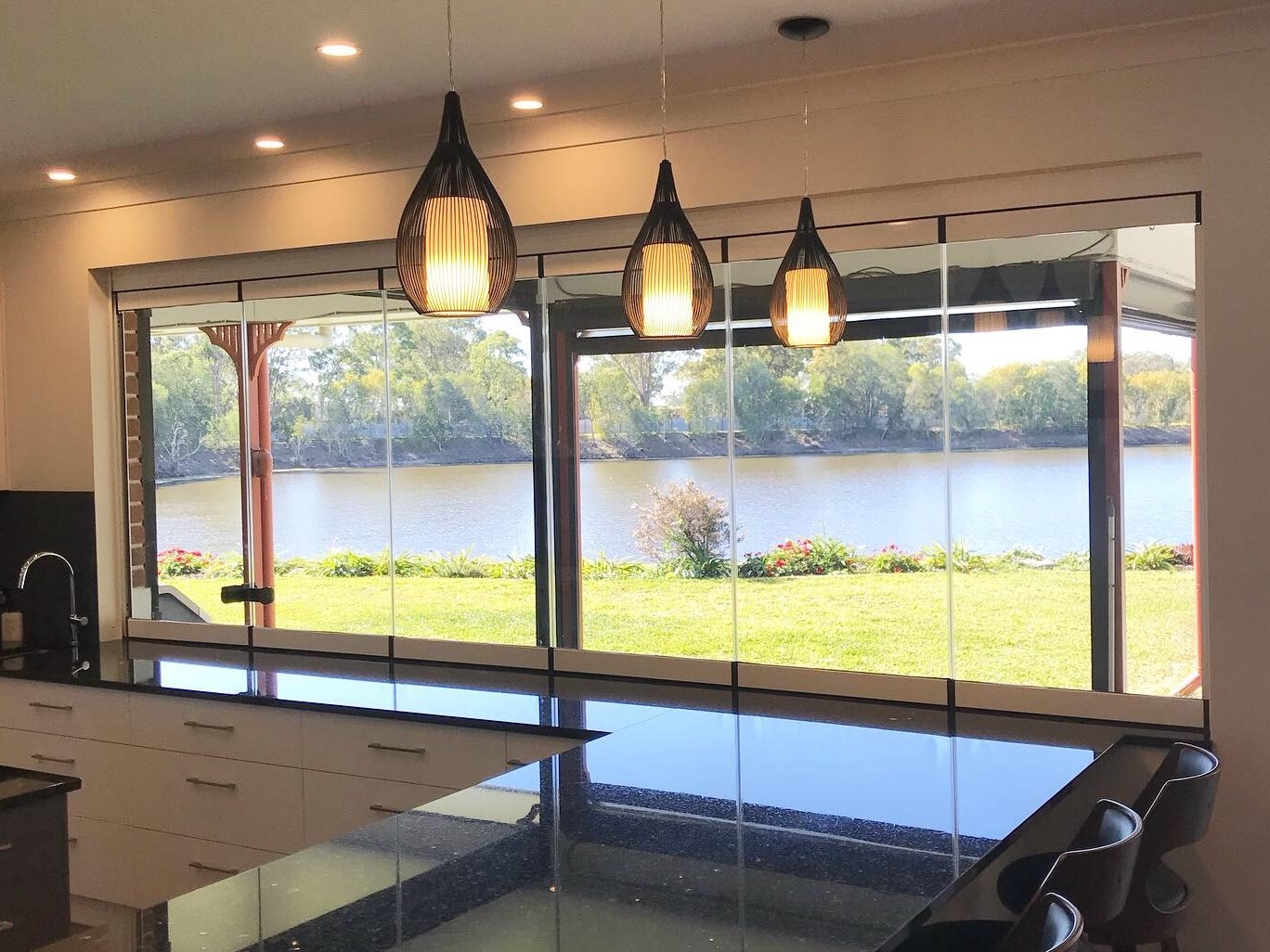

Enhance the flow in the heart of your home with a frameless servery window. Our unique stacking glass panels allow you to connect inside to outside with a seamless look and feel.

Our servery windows are flat packed, shipped to you free of charge and can be installed by a general trade, such as a carpenter or handy man.

FREE SHIPPING
SELF-INSTALL
FLAT PACK
Priced from $3660
GET A QUOTE
Z

A GRADE SAFETY GLASS

Z

ALUMINIUM TRACKS

Z

NATA TESTED AS2047

Z

CORROSION RESISTANT

Download PDF Product Brochure

Download PDF Tech Specifications

Custom options

Our servery windows are made to order. Discover your options below

Glass Options
Bottom Track Options
Stacking Options
Frame Colour Options
Specifications
Weather Seal

100% Australian Made

Compliance AS2047 AS1288

6 Year AGWA Warranty

Wind Rated ULS N5 SLS C4

Energy Rated 15mm U Value 5.5 SHGC 0.7

Bushfire Rating BAL 29

Want to find out more?

We’d love to answer any questions you might have, send you some more info or help you in deciding which options would suit you best.

Simply fill in the form and we will be in touch.

HOPE TO CHAT SOON

    Ready to take the next step?

    GET A QUOTE
    TALK TO AN EXPERT

    We use A GRADE Toughened Safety Glass
    because it is:

    • Stronger than annealed glass
    • Good quality A- Grade.
    • High wind load tolerant.
    • Durable, tough and built to last.

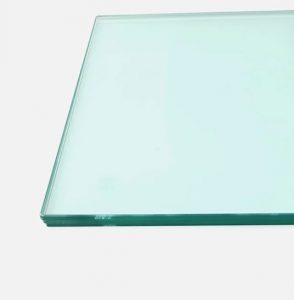

    Option 1

    STANDARD CLEAR

    UV TRANS 52%
    U VALUE 5.7
    SHADING CO 0.86
    SHGC 0.75

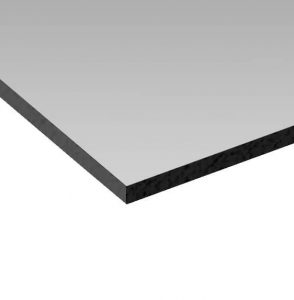

    Option 2

    TINTED GREY

    UV TRANS 11%
    U VALUE 5.7
    SHADING CO 0.55
    SHGC 0.47

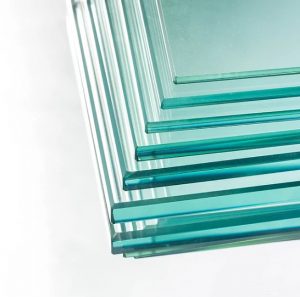

    Option 3

    LOW E

    UV TRANS 42%
    U VALUE 3.6
    SHADING CO 0.75
    SHGC 0.65

    HARDWARE

    All our Rollers are constructed with corrosion-resistant ZZ (sealed on both sides) wheel bearings.
    Capped with polymer plastic caps.
    Hard-wearing, long-lasting, wear resistant.

    CYCLONIC WIND TOLERANT

    Wind loads up to 300km per hour.
    ULS C4
    Select the colour of the frame to compliment the design of your kitchen and exterior of your home.

    Our most popular colours are

    SATIN BLACK

    PEARL WHITE

    DUNE

    MONUMENT

    SHALE GREY

    PAPERBARK

    Decide what track you want along the bottom of the panels. If your benchtop is one continuous surface, you might want to recess the bottom.

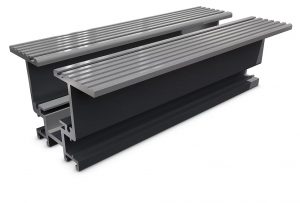

    Option 1

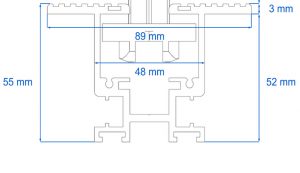

    BOTTOM FRAME, WITH TRIM

    This frame is wider as it is lipped.
    This gives a clean finish to your channel cut line.

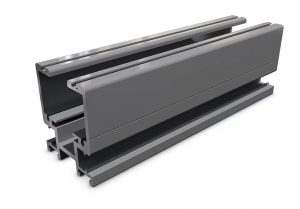

    Option 2

    BOTTOM FRAME, NO TRIM

    This frame is narrower
    It requires a perfect channel cut line

    FRAME WITH TRIM [FF]
    Fully Recessed

    This track is sunk into your counter top in a channel 55mm deep.

    It is finished off with neat and sleek lips on each side which give a clean finish to your counter

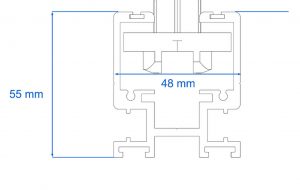

    FRAME NO TRIM [RS]
    Fully Recessed

    This track is sunk into your counter top in a channel 55mm deep.

    It has a narrower channel but does require a clean cut.

    FRAME NO TRIM [RS]
    Stepped

    This track is used when you have two different level bench tops for inside to outside

    FRAME NO TRIM [RS]
    On Top of Counter

    This track can be installed on top of your counter which allows for maximum drainage
    Choose how you want your servery window stacked i.e. inside left, outside right etc. You will make this decision based on the way you are going to use the space.

    Inter-Locking Caps

    Extra strength and tight seal is achieved with our male and female end caps. Tightly clipping the panels together when closed to create a strong inter-locked system. Our system is not solely reliant on weather strips for its strength in high winds. The inter-locking ends caps offer you peace of mind in strong winds.

    Weather Seal

    Using a clear UV stable weather seal in a H shape which clips onto one piece and receives the next panel into a tight seal

    ​

    These seals create a tight seal between the glass panels and gives additional strength to the glass when closed

    Inter-Locking Caps

    Extra strength and tight seal is achieved with our male and female end caps. Tightly clipping the panels together when closed to create a strong inter-locked system. Our system is not solely reliant on weather strips for its strength in high winds. The inter-locking ends caps offer you peace of mind in strong winds.

    Weather Seal

    Using a clear UV stable weather seal in a H shape which clips onto one piece and receives the next panel into a tight seal

    ​These seals create a tight seal between the glass panels and gives additional strength to the glass when closed
