Alfresco Enclosure System

3240mm
Max Height
Unlimited
Width
10, 12, 15mm
Toughened Safety Glass

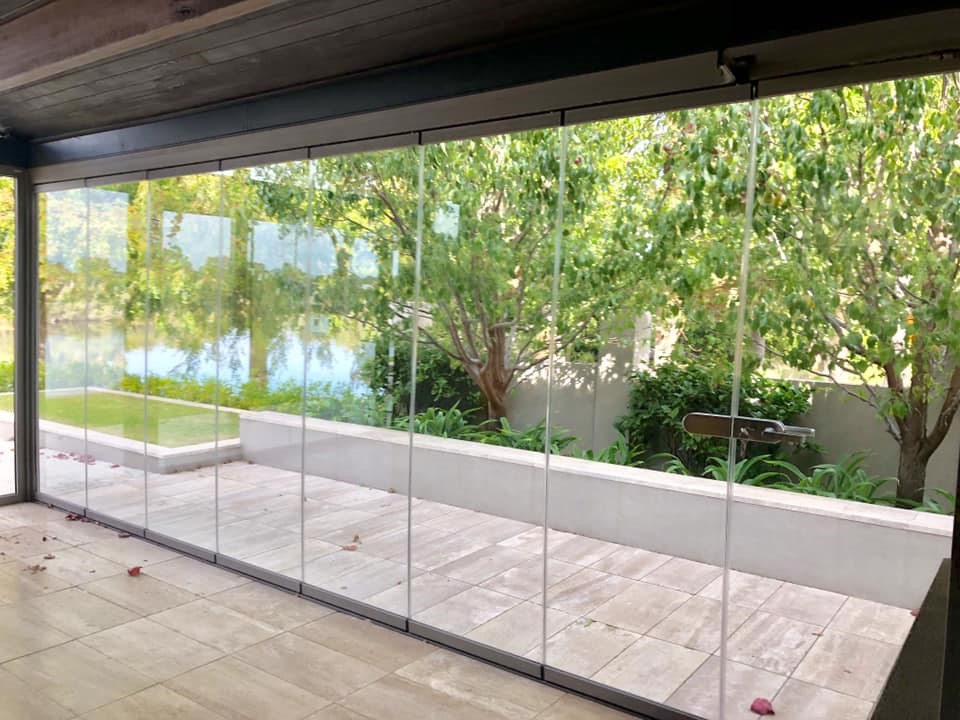

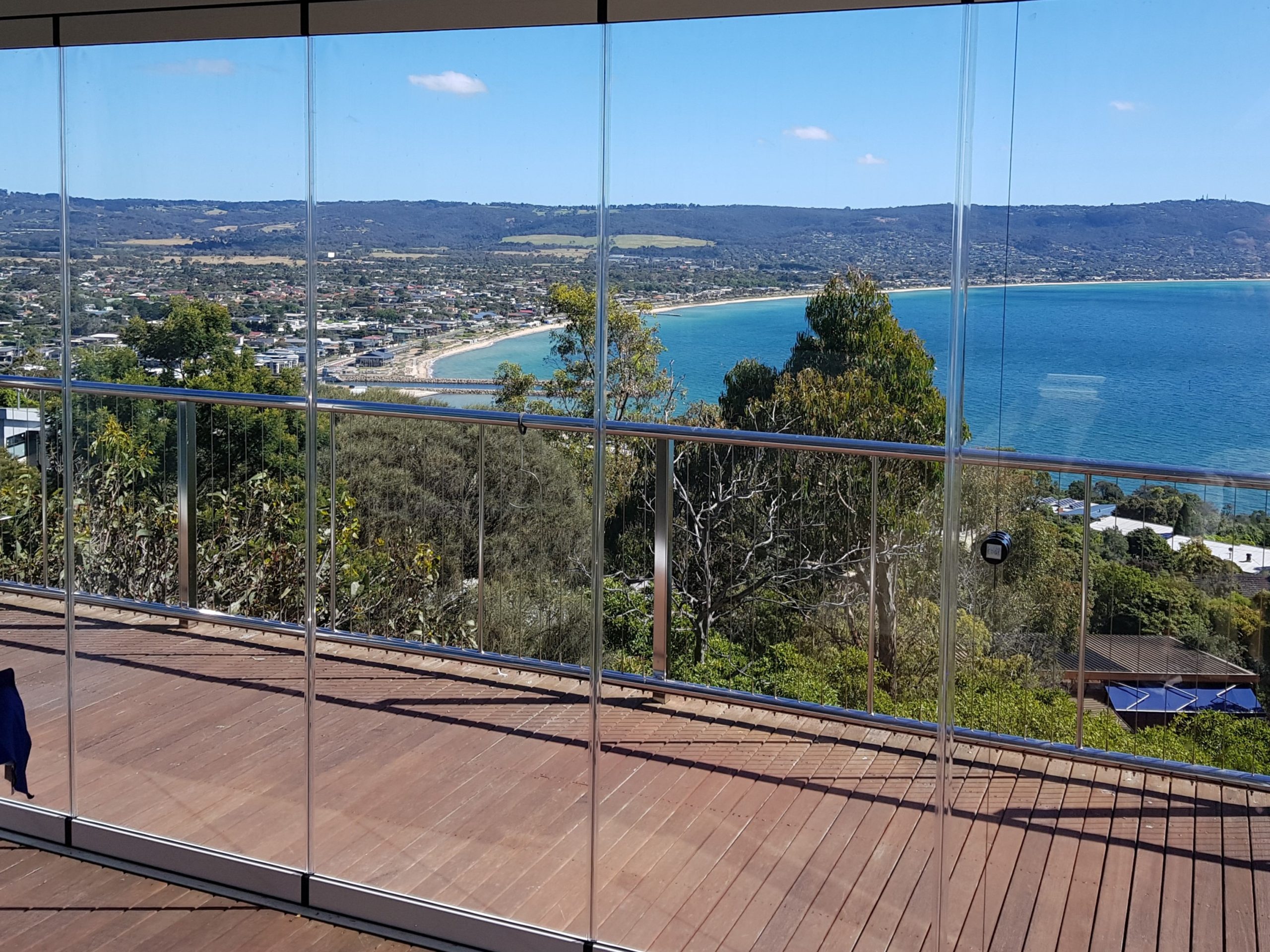

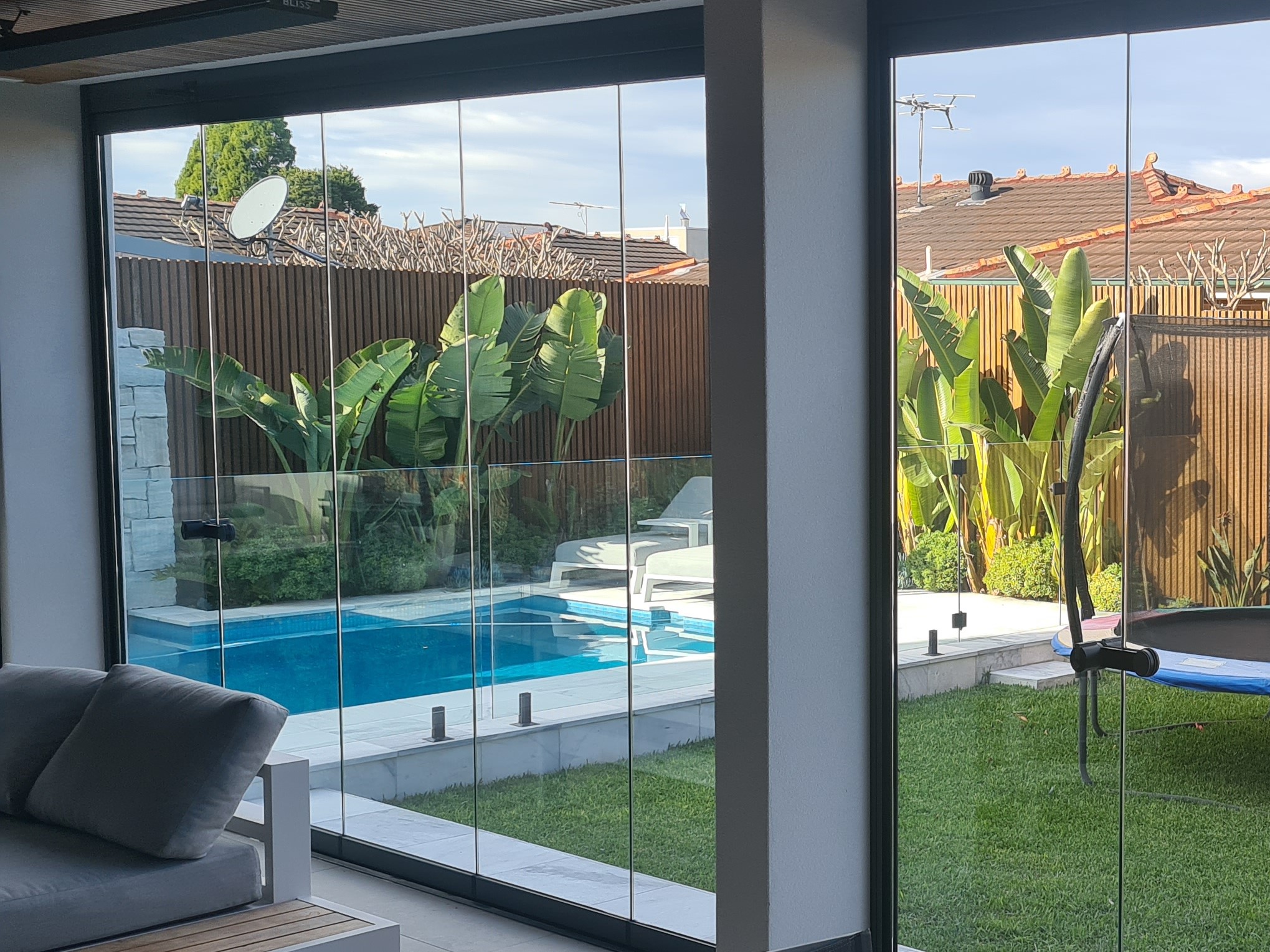

Open up the full potential of your alfresco with our weather-resistant, retractable frameless glass alfresco enclosure, designed for those who love to entertain. Bid farewell to compromises as you immerse yourself in the epitome of luxury living with our cutting-edge frameless glass alfresco enclosure and patio enclosure systems.

Our Alfresco Glass Enclosure Systems come in three high quality options:

Standard System

For basic openings

Premium System

For higher openings

Ultimate

For very high openinigs, extreme weather and high winds.

FULLY INSTALLED BY OUR LICENCED AGENTS

Z

A GRADE SAFETY GLASS

Z

PREMIUM PRODUCT

Z

WIND LOAD TESTED CYCLONIC RATED

Z

CORROSION RESISTANT

Custom options

Our systems are custom made, with options to suit every application

Product Options
Glass Options
Frame Colour Options
Bottom Track Options
Stacking Options
Specifications
Weather Seal

100% Australian Made

Compliance AS2047 AS1288

6 Year AGWA Warranty

Wind Rated ULS N5 SLS C4

Energy Rated 15mm UValue 5.5 SHGC 0.7

Bushfire Rating BAL 29

Want to find out more?

We’d love to answer any questions you might have, send you some more info or help you in deciding which options would suit you best. Simply fill in the form and we will be in touch. HOPE TO CHAT SOON

    Ready to take the next step?

    Option 1

    STANDARD SYSTEM

    Constructed with:

    10mm Clear Toughened Safety Glass

    Max Height:

    2800mm

    Option 2

    PREMIUM SYSTEM

    ​Constructed with:

    12mm Toughened Safety Glass


    Max Height:

    3100mm

    Option 3

    ULTIMATE SYSTEM

    Constructed with:

    15mm Toughened Safety Glass


    Max Height:

    3240mm

    HARDWARE

    All our Rollers are constructed with corrosion-resistant ZZ (sealed on both sides) wheel bearings. Capped with polymer plastic caps. Hard-wearing, long-lasting, wear resistant.

    CYCLONIC WIND TOLERANT

    Wind loads up to 300km per hour. ULS C4

    We use A GRADE Toughened Safety Glass
    because it is:

    • Stronger than annealed glass
    • Good quality A- Grade.
    • High wind load tolerant.
    • Durable, tough and built to last.

    Option 1

    STANDARD CLEAR

    UV TRANS 52%
    U VALUE 5.7
    SHADING CO 0.86
    SHGC 0.75

    Option 2

    TINTED GREY

    UV TRANS 11%
    U VALUE 5.7
    SHADING CO 0.55
    SHGC 0.47

    Option 3

    LOW E

    UV TRANS 42%
    U VALUE 3.6
    SHADING CO 0.75
    SHGC 0.65
    Select the colour of the frame to compliment the design of your kitchen and exterior of your home.

    Our most popular colours are

    SATIN BLACK

    PEARL WHITE

    DUNE

    MONUMENT

    SHALE GREY

    PAPERBARK

    Decide what track you want along the bottom of the panels. If your benchtop is one continuous surface, you might want to recess the bottom.

    Option 1

    BOTTOM TRACK – FULLY RECESSED

    This frame is wider as it is lipped. This gives a clean finish to your channel cut line.

    Option 2

    BOTTOM TRACK – STEPPED

    This frame is narrower Designed for varying floor levels from inside to outside

    FRAME WITH TRIM [FF] Fully Recessed

    This track is sunk into your counter top in a channel 55mm deep. It is finished off with neat and sleek lips on each side which give a clean finish to your counter

    FRAME NO TRIM [RS] On Top of Counter

    This track can be installed on top of your counter which allows for maximum drainage

    FRAME NO TRIM [RS] Stepped

    This track is used when you have two different level bench tops for inside to outside
    Choose how you want your servery window stacked i.e. inside left, outside right etc. You will make this decision based on the way you are going to use the space.

    Inter-Locking Caps

    Extra strength and tight seal is achieved with our male and female end caps. Tightly clipping the panels together when closed to create a strong inter-locked system. Our system is not solely reliant on weather strips for its strength in high winds. The inter-locking ends caps offer you peace of mind in strong winds.

    Weather Seal

    Using a clear UV stable weather seal in a H shape which clips onto one piece and receives the next panel into a tight seal

    These seals create a tight seal between the glass panels and gives additional strength to the glass when closed

    Inter-Locking Caps

    Extra strength and tight seal is achieved with our male and female end caps. Tightly clipping the panels together when closed to create a strong inter-locked system. Our system is not solely reliant on weather strips for its strength in high winds. The inter-locking ends caps offer you peace of mind in strong winds.

    Weather Seal

    Using a clear UV stable weather seal in a H shape which clips onto one piece and receives the next panel into a tight seal

    ​These seals create a tight seal between the glass panels and gives additional strength to the glass when closed
